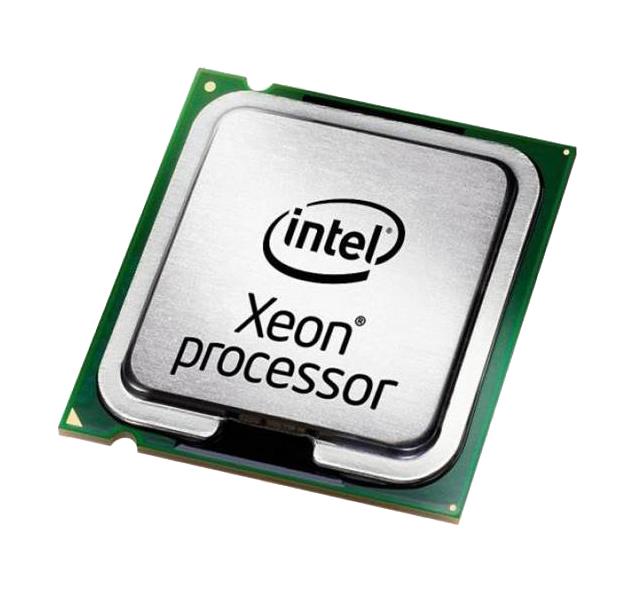

CL8067703400904 Intel Xeon E3-1501L v6 Quad Core 2.10GHz 6MB L3 Cache Socket BGA1440 Processor
Mfg Part No:
Global Part Number(GPN):
CL8067703400904
Global Part Number(GPN):
1488625487
Looking for a large quantity of CL8067703400904? Call us at +1 (888) 898-8012 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Request for Quote
Please call at +1 (888) 898-8012 and one of our representative will be happy to assist you with part no CL8067703400904. Or Request a Quote below:
Technical Specifications
| Processor - Package Model: E3-1501L v6 Socket Type: BGA1440 | |
| Brand | Intel |
| Part No. | CL8067703400904 |
| Processor Type | Embedded |
| Processor Family | E3-1500 v6 |
| Series | Xeon E Processor |
| Core Model Type/ProcNo. | E3-1501L v6 |
| Processor Code Name | Kaby Lake |
| Core Stepping | B0 |
| Manufacturing Technology | 14 nm |
| # of Cores | 4 |
| # of Threads | 4 |
| Clock Speed | 2.10 GHz |
| L3 Cache Size | 6 MB |
| Thermal Power | 25 Watts |
| Max Memory Size | 64 GB |
| Memory Types | DDR4-2400 |
| Maximum Memory Bandwidth | 34.1 GB/s |
| ECC Memory Supported | Yes |
| CPU Socket Type | BGA1440 |
| TJUNCTION | 100 °C |
| Package Size | 42mm x 28mm |
| Processor Graphics | Intel HD Graphics P630 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.00 GHz |
| Graphics Video Max Memory | 1.7 GB |
| Graphics Output | eDP/DP/HDMI/DVI |
| 4K Support | Yes, at 60Hz |
| Max Resolution (DP) | 4096 x 2304 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel) | 4096 x 2304 @ 60Hz |
| DirectX Support | 12 |
| OpenGL Support | 4.4 |
| Intel Quick Sync Video | Yes |
| Intel InTru 3D Technology | Yes |
| Intel Clear Video HD Technology | Yes |
| Intel Clear Video Technology | Yes |
| # of Displays Supported | 3 |
| Device ID | 0x591D |
| PCI Express | 3.0 |
| PCI Express Configurations |
1 x16 1x8+2x4 2 x8 |
| Advanced Technologies |
Enhanced Intel SpeedStep Technology Idle States Instruction Set 64-bit Intel 64 Intel Speed Shift Technology Intel Turbo Boost Technology 2.0 Intel Virtualization Technology (VT-x) Intel Virtualization Technology for Directed I/O (VT-d) Intel vPro Platform Eligibility Intel VT-x with Extended Page Tables (EPT) Thermal Monitoring Technologies |
| Instruction Set Extensions | Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
| Security & Reliability |
Execute Disable Bit Intel AES New Instructions Intel Memory Protection Extensions (Intel MPX) Intel OS Guard Intel Software Guard Extensions (Intel SGX) Intel Trusted Execution Technology Secure Key |
| Product Condition | OEM |
| Standard Warranty | 21 days |
General Information
OEM CPUs.
CL8067703400904 Intel Xeon E3-1501L v6 Quad Core 2.10GHz 6MB L3 Cache Socket BGA1440 Processor Refurbished
- The CPU you are ordering, if it is designated as OEM it can be NEW or Refurbished.
- Depending on how old the CPU is and how long it has been out of production, the CPU condition may be new, pull, pre-owned, or like-new condition. The older the cpu is the more likely it is out of production. In that case these pre-owned, pulls are the only ones available.
- ALL OEM Cpus are tested before shipping and carry a 21 day warranty for replacement only. There are NO cancellations or returns accepted for these parts.
- Please check your system requirements carefully before ordering CPU's.
- If you are going to use the CPU in a dual-cpu SERVER application or machine then YOU MUST match the SL code for the new CPU with your existing CPU . Please call us if you need help.
- SL codes - All INTEL cpu's are also designated by a Step code or SLcode. This is a 5 digit alpha-numberic code on the cpu itself. Your particular cpu may have many SL codes (think of them as versions of cpus made). In order to run dual cpus in one machine the SL codes must match
- If you have a brand name computer (eg HP, DELL, IBM you must provide us with a HeatSink part number or we will ship you a generic heatsink if you order one from us.)
