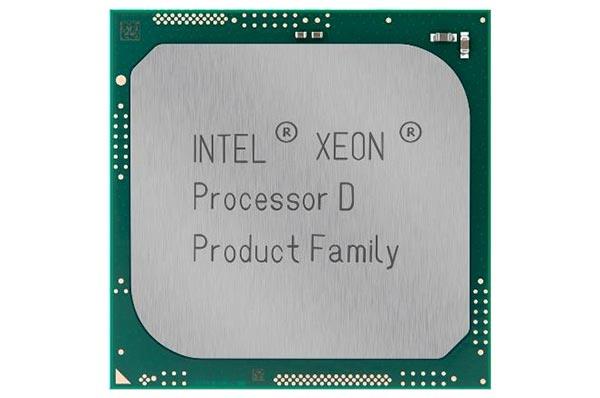

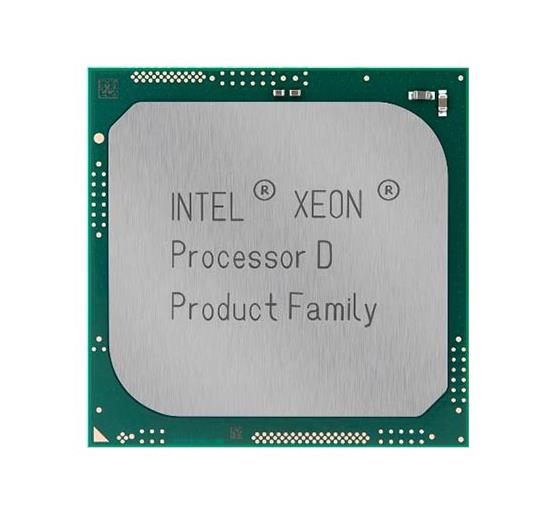

GG8067402570204 Intel Xeon D-1581 16-Core 1.80GHz 24MB L3 Cache Socket BGA1667 Processor
Mfg Part No:
Global Part Number(GPN):
GG8067402570204
Global Part Number(GPN):
1488705202
Looking for a large quantity of GG8067402570204? Call us at +1 (888) 898-8012 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Request for Quote
Please call at +1 (888) 898-8012 and one of our representative will be happy to assist you with part no GG8067402570204. Or Request a Quote below:
Technical Specifications
| Processor - Package Model: D-1581 Socket Type: BGA1667 | |
| Brand | Intel |
| Part No. | GG8067402570204 |
| Processor Type | Server |
| Series | Xeon D Processor |
| Core Model Type/ProcNo. | D-1581 |
| Processor Code Name | Broadwell |
| Core Stepping | Y0 |
| Manufacturing Technology | 14 nm |
| # of Cores | 16 |
| # of Threads | 32 |
| Clock Speed | 1.80 GHz |
| L3 Cache Size | 24 MB |
| Thermal Power | 65 Watts |
| Max Memory Size | 128 GB |
| Memory Types | DDR4-2133 |
| Maximum Memory Speed | 2133 MHz |
| Memory Channels | 2 |
| ECC Memory Supported | Yes |
| CPU Socket Type | BGA1667 |
| Max CPU Configuration | 1 |
| Package Size | 37.5 mm x 37.5 mm |
| Embedded Options Available | No |
| Scalability | 1S |
| PCI Express | 3.0 |
| PCI Express Configurations |
x16 x4 x8 |
| Max # of PCI Express Lanes | 32 |
| # of USB Ports | 8 |
| USB Revision | 2.0 |
| Advanced Technologies |
Enhanced Intel SpeedStep Technology Idle States Instruction Set 64-bit Intel 64 Intel Hyper-Threading Technology Intel Transactional Synchronization Extensions Intel Turbo Boost Technology 2.0 Intel Virtualization Technology (VT-x) Intel Virtualization Technology for Directed I/O (VT-d) Intel VT-x with Extended Page Tables (EPT) Thermal Monitoring Technologies |
| Instruction Set Extensions | Intel AVX2 |
| Security & Reliability |
Execute Disable Bit Intel AES New Instructions Intel OS Guard Intel Trusted Execution Technology |
General Information
OEM CPUs.
GG8067402570204 Intel Xeon D-1581 16-Core 1.80GHz 24MB L3 Cache Socket BGA1667 Processor Refurbished
- The CPU you are ordering, if it is designated as OEM it can be NEW or Refurbished.
- Depending on how old the CPU is and how long it has been out of production, the CPU condition may be new, pull, pre-owned, or like-new condition. The older the cpu is the more likely it is out of production. In that case these pre-owned, pulls are the only ones available.
- ALL OEM Cpus are tested before shipping and carry a 21 day warranty for replacement only. There are NO cancellations or returns accepted for these parts.
- Please check your system requirements carefully before ordering CPU's.
- If you are going to use the CPU in a dual-cpu SERVER application or machine then YOU MUST match the SL code for the new CPU with your existing CPU . Please call us if you need help.
- SL codes - All INTEL cpu's are also designated by a Step code or SLcode. This is a 5 digit alpha-numberic code on the cpu itself. Your particular cpu may have many SL codes (think of them as versions of cpus made). In order to run dual cpus in one machine the SL codes must match
- If you have a brand name computer (eg HP, DELL, IBM you must provide us with a HeatSink part number or we will ship you a generic heatsink if you order one from us.)
