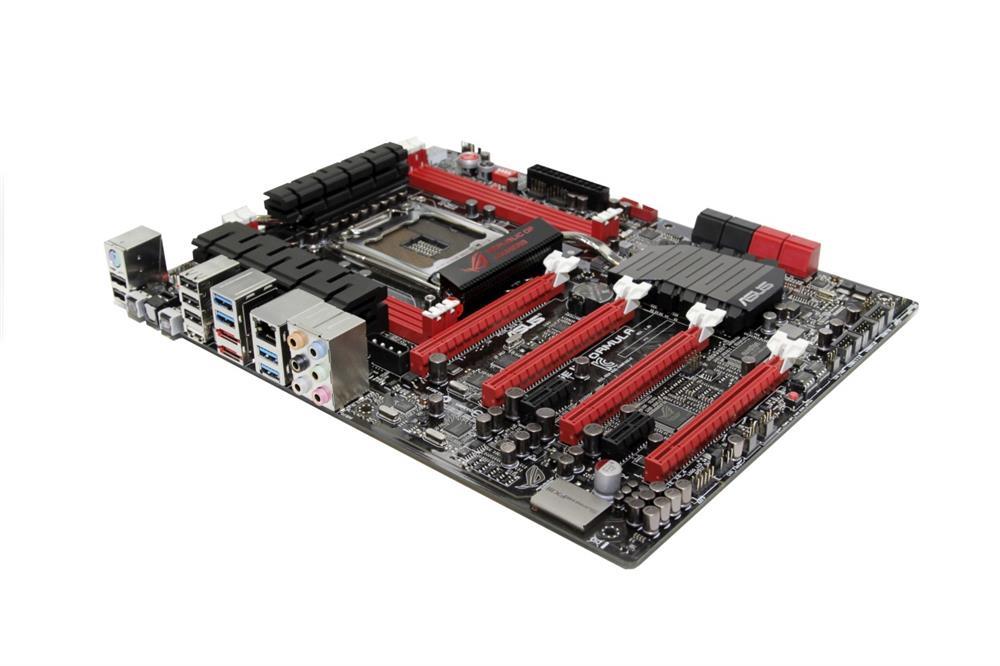

90-MIBHI0-G0AAY00Z ASUS Rampage IV Formula Socket LGA 2011 Intel X79 Chipset Core i7 Processors Support DDR3 4x DIMM 2x SATA 6.0Gb/s ATX Motherboard (Refurbished)
90-MIBHI0-G0AAY00Z ASUS Rampage IV Formula Socket LGA 2011 Intel X79 Chipset Core i7 Processors Support DDR3 4x DIMM 2x SATA 6.0Gb/s ATX Motherboard (Refurbished)

90-MIBHI0-G0AAY00Z ASUS Rampage IV Formula Socket LGA 2011 Intel X79 Chipset Core i7 Processors Support DDR3 4x DIMM 2x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

90-MIBHI0-G0AAY00Z

Icon Global Part Number(GPN):

1481719237

Availability:In Stock
$396.20 $880.44 You Save: $484.24 (55% )

Looking for a large quantity of 90-MIBHI0-G0AAY00Z? Call us at +1 (888) 898-8012 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Request for Quote

Please call at +1 (888) 898-8012 and one of our representative will be happy to assist you with part no 90-MIBHI0-G0AAY00Z. Or Request a Quote below:



Technical Specifications

Model
Manufacturer ASUS
Manufacturer Part # 90-MIBHI0-G0AAY00Z
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 2011
Supported CPU(s) Intel Core i7 Processor
Supported CPU Technologies Intel Turbo Boost Technology
Chipset Intel X79 Express
Number of Memory Slot(s) 4
Number of Memory Channel(s) 4
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-14900 (DDR3-1866)
 PC3-19200 (DDR3-2400)
Maximum Installed Memory 32GB
Expansion Slots PCI-E 2.0 x1
 PCI-E 2.0 x16
 PCI-E 3.0 x16
Expansion Slots Details
  • 4 x PCIe 3.0/2.0 x16 (x16 or dual x16 or x16/x8/x16 or x16/x8/x8/x8, red) *2
  • 2 x PCIe 2.0 x1
    		•
    Storage Controller SATA 3.0 Gbps
     SATA 6.0 Gbps
    Storage Controller Details Intel X79 chipset
  • 2 x SATA 6Gb/s port(s), red
  • 4 x SATA 3Gb/s port(s), black
  • Support Raid 0, 1, 5, 10

    • ASMedia ASM1061 controller
  • 2 x SATA 6Gb/s port(s), red
  • 2 x eSATA 6Gb/s port(s), red
    		•
    Network Gigabit Ethernet
    Connectors/Ports 8-pin 12V Power Connector
     Audio-In
     Audio-Out
     Chassis Fan Connector
     COM
     CPU Fan Connector
     PS/2
     PS/2 Keyboard
     PS/2 Mouse
     RJ-45
     TPM Header
     USB 2.0
     USB 3.1
    Connectors/Ports Details Internal I/O Ports
  • 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  • 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  • 4 x SATA 6Gb/s connector(s)
  • 4 x SATA 3Gb/s connector(s)
  • 2 x CPU Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 3 x Optional Fan connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x Slow Mode switch(es)
  • 8 x ProbeIt Measurement Points
  • 3 x Thermal sensor connector(s)
  • 1 x EZ Plug connector(s) (4-pin Molex power connector)
  • 1 x Power-on button(s)
  • 1 x Reset button(s)
  • 1 x LN2 Mode switch(es)
  • 1 x Go Button(s)

    • Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 2 x eSATA 6Gb/s
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.1 Gen 1
  • 6 x USB 2.0 (one port can be switched to ROG Connect)
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)
  • 1 x Clear CMOS button(s)
  • 1 x ROG Connect On/ Off switch(es)
    		•

    General Information

  • Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.
  • This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.
  • Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.
  • This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.
  • All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.
  • Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.
  • 90-MIBHI0-G0AAY00Z ASUS Rampage IV Formula Socket LGA 2011 Intel X79 Chipset Core i7 Processors Support DDR3 4x DIMM 2x SATA 6.0Gb/s ATX Motherboard (Refurbished)
