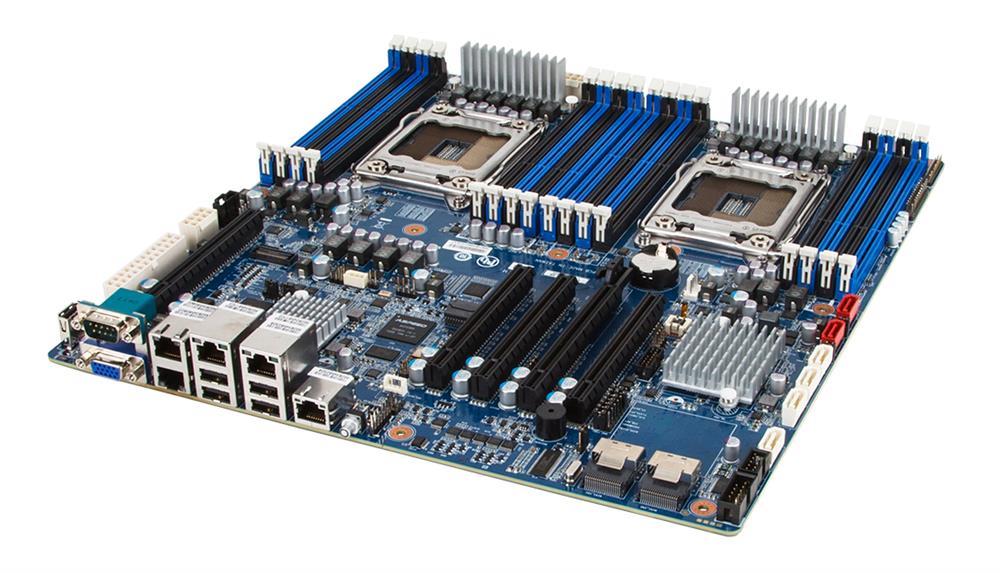

GA-7PESH4 (rev. 1.0) Gigabyte Dual Socket LGA 2011 Intel C602 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 16x DIMM 4x SATA 3.0Gb/s Extended ATX/ SSI EEB Motherboard (Refurbished)
GA-7PESH4 (rev. 1.0) Gigabyte Dual Socket LGA 2011 Intel C602 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 16x DIMM 4x SATA 3.0Gb/s Extended ATX/ SSI EEB Motherboard (Refurbished)

GA-7PESH4 (rev. 1.0) Gigabyte Dual Socket LGA 2011 Intel C602 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 16x DIMM 4x SATA 3.0Gb/s Extended ATX/ SSI EEB Motherboard (Refurbished)

Mfg Part No:

GA-7PESH4 (rev. 1.0)

Availability:Available for Order
$1,129.06 $1,612.95 You Save: $483.89 (30% )

Looking for a large quantity of GA-7PESH4 (rev. 1.0)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Request for Quote

Please call at +1 (888) 898-8012 and one of our representative will be happy to assist you with part no GA-7PESH4 (rev. 1.0). Or Request a Quote below:



Technical Specifications

Model
Manufacturer Gigabyte Tech
Manufacturer Part # GA-7PESH4 (rev. 1.0)
Performance
Product Type Server Motherboard
Form Factor E-ATX
CPU Socket Type LGA 2011
Supported CPU(s) Intel Xeon Processor
Supported CPU Technologies 64-bit
 Hyper-Threading Technology
 Intel Turbo Boost Technology
 Intel Virtualization Technology
Chipset Intel C602
Number of Memory Slot(s) 16
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory
  • Single, dual and quad rank RDIMM modules up to 32GB supported
  • Single and dual rank UDIMM modules up to 8GB supported
    		•
    Expansion Slots PCI-E x16
    Expansion Slots Details
  • 3 x PCIe x16 (Gen3 x16 bus) slots
  • 2 x PCIe x16 (Gen3 x8 bus) slots
  • 4 x PCIe x16 (Gen3 x16 bus) slots
    		•
    Storage Controller SATA 3.0 Gbps
     SATA 6.0 Gbps
    Storage Controller Details
  • 1 x Mini-SAS (for 4 x SATA 3Gb/s ports)
  • 1 x Mini-SAS (disabled, can be enabled via Intel upgrade key)
  • 2 x SATA III 6Gb/s ports
  • 4 x SATA II 3Gb/s ports
    		•
    On-Board Video Controller ASPEED AST2300
    Network Gigabit Ethernet
    Connectors/Ports 24-pin ATX Power Connector
     8-pin 12V Power Connector
     CPU Fan Connector
     RJ-45
     Serial
     USB 2.0
    Connectors/Ports Details Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x PMBus connector
  • 4 x System fan headers
  • 2 x CPU fan headers
  • 1 x USB 2.0 vertical Type A port
  • 1 x HDD back plane board header
  • 1 x Front panel header
  • 1 x SATA1 port DOM support jumper
  • 1 x SATA2 port DOM support jumper
  • 2 x SATA III 6Gb/s ports
  • 4 x SATA II 3Gb/s ports
  • 1 x USB 2.0 header
  • 1 x Serial header
  • 2 x Mini-SAS cable connectors
  • 1 x S3_MASK jumper
  • 1 x Flash descriptor security jumper
  • 1 x Clear CMOS jumper
  • 1 x ME recovery jumper
  • 1 x Skip supervisor password jumper
  • 1 x BIOS recovery jumper
  • 1 x Force to Stop FRB3 Timer jumper
  • 1 x BIOS write protect jumper
  • 1 x TPM header
  • 1 x SATA SGPIO header
  • 1 x IPMB connector
  • 1 x Chassis intrusion header

    • Rear I/O Connectors
  • 4 x USB 2.0
  • 1 x VGA
  • 1 x Serial
  • 5 x RJ45
  • 1 x ID button with LED
    		•

    General Information

  • GA-7PESH4 (rev. 1.0) Gigabyte Dual Socket LGA 2011 Intel C602 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 16x DIMM 4x SATA 3.0Gb/s Extended ATX/ SSI EEB Motherboard (Refurbished)
