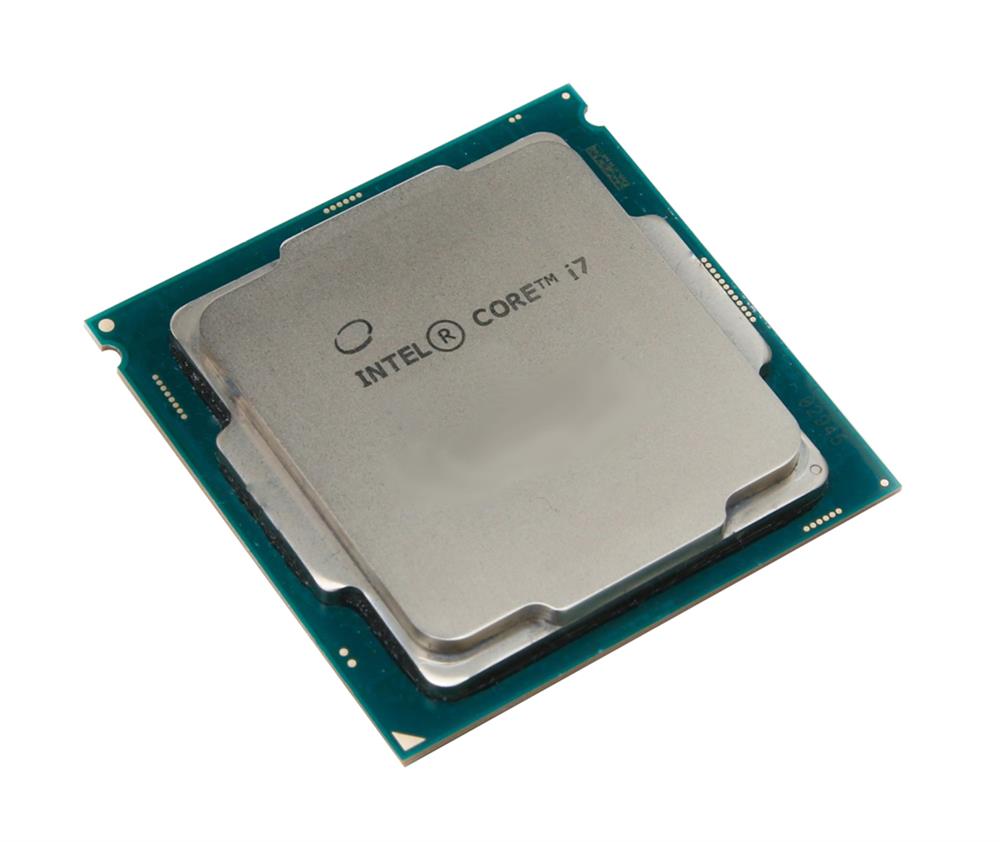

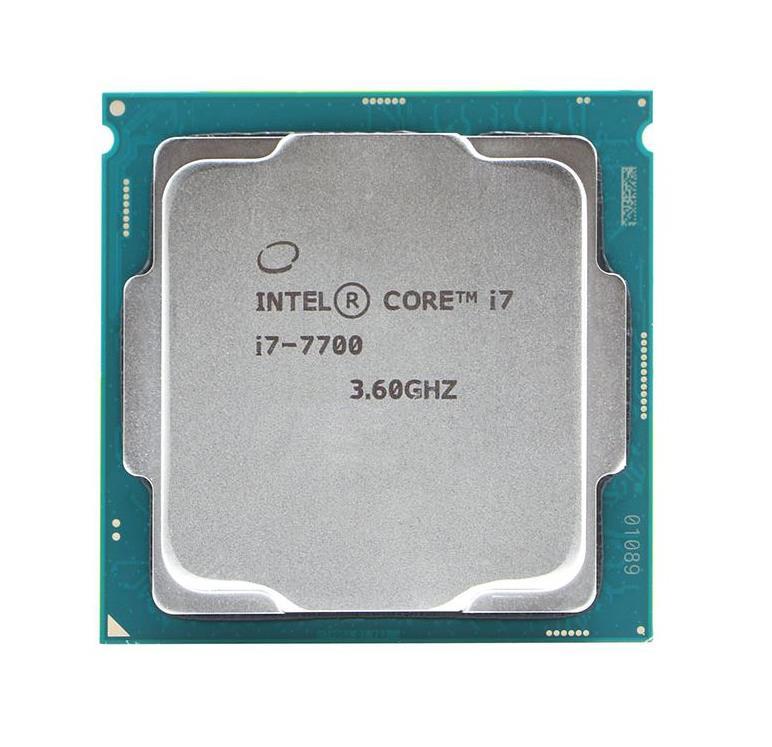

Processor - Package Model: i7-7700 Socket Type: LGA 1151 | |
Processor Type | Desktop |
Processor Family | 7th Generation Intel Core i7 Processors |
Series | Core i7 Desktop |
Core Model Type/ProcNo. | i7-7700 |
Processor Code Name | Kaby Lake |
Manufacturing Technology | 14 nm |
# of Cores | 4 |
# of Threads | 8 |
L3 Cache Size | 8 MB |
Front Side Bus / QuickPath Interconnect | 8.00 GT/s DMI |
Thermal Power | 65 Watts |
Max Memory Size | 64 GB |
Memory Types |
DDR3L-1333 DDR3L-1600 DDR4-2133 DDR4-2400 |
Memory Channels | 2 |
ECC Memory Supported | No |
CPU Socket Type | LGA 1151 |
Max CPU Configuration | 1 |
TJUNCTION | 100 °C |
Package Size | 37.5mm x 37.5mm |
Processor Graphics | Intel HD Graphics 630 |
Graphics Base Frequency | 350 MHz |
Graphics Max Dynamic Frequency | 1.15 GHz |
Graphics Video Max Memory | 64 GB |
4K Support | Yes, at 60Hz |
Max Resolution (HDMI 1.4) | 4096 x 2304 @ 24Hz |
Max Resolution (DP) | 4096 x 2304 @ 60Hz |
Max Resolution (eDP - Integrated Flat Panel) | 4096 x 2304 @ 60Hz |
DirectX Support | 12 |
OpenGL Support | 4.5 |
Intel Quick Sync Video | Yes |
Intel InTru 3D Technology | Yes |
Intel Clear Video HD Technology | Yes |
Intel Clear Video Technology | Yes |
# of Displays Supported | 3 |
Device ID | 0x5912 |
Embedded Options Available | Yes |
Scalability | 1S |
PCI Express | 3.0 |
PCI Express Configurations |
1 x16 1x8+2x4 2 x8 |
Max # of PCI Express Lanes | 16 |
Advanced Technologies |
Enhanced Intel SpeedStep Technology Idle States Instruction Set 64-bit Intel 64 Intel Hyper-Threading Technology Intel Optane Memory Supported Intel Stable Image Platform Program (SIPP) Intel Transactional Synchronization Extensions Intel Turbo Boost Technology 2.0 Intel Virtualization Technology (VT-x) Intel Virtualization Technology for Directed I/O (VT-d) Intel vPro Platform Eligibility Thermal Monitoring Technologies |
Instruction Set Extensions | Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
Security & Reliability |
Execute Disable Bit Intel AES New Instructions Intel Boot Guard Intel Memory Protection Extensions (Intel MPX) Intel OS Guard Intel Software Guard Extensions (Intel SGX) Intel Trusted Execution Technology Secure Key |
Product Condition | OEM |
Standard Warranty | 21 days |
